Yamaha YZF-R125 2011

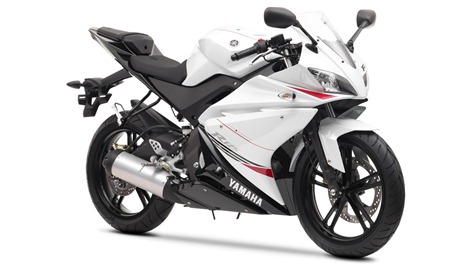

Yamaha YZF R125 White

4-stroke, 4-valve, single cylinder, liquid-cooled, SOHC engine is tuned to deliver free-revving performance Yamaha YZF-R125 2011.

The YZF-R125 also has real racing pedigree, featuring the agressive styling of the R6 and R1 as well as a MotoGP inspired mid-ship exhaust.

Yamaha YZF R125 Blue

The YZF-R125’s advanced engine combines a 4-valve cylinder head and fuel-injection for the best possible performance. The short stroke layout gives the engine a free-revving character, which when connected to the 6-speed gearbox, delivers lively acceleration.

With R-series style front cowling and twin fox-eye headlights, the YZF-R125 has the same aggressive supersport styling as the R1 and R6. Unlike many 125cc bikes, the R125 is built on a full-sized chassis providing a more comfortable riding position – especially for taller riders.

Yamaha is committed to using high-specification components – like the large diameter 292mm front disc brake units on the YZF-R125. The compact twin-pot caliper design on the front-brake combined with the 230mm rear disc ensures smooth, controlled braking at a range of speeds and assured stopping power when you need it.

The mid-ship Yamaha YZF-R125 2011 exhaust muffler contributes to centralise the bike’s mass for balanced handling, and houses dual catalysers for cleaner emissions. In addition, an Air Induction System introduces air into the exhaust for more complete combustion of exhaust gases, lowering emissions even further.

The combined digital and analogue panel Yamaha YZF-R125 2011 speedometer provides a clear view of all the bike’s vital functions at a glance.

The Yamaha YZF-R125 2011 features a lightweight Deltabox frame which delivers an optimum balance of strength and rigidity for class-leading handling performance. Complementing the frame is a lightweight cast aluminium swinging arm that allows the link-type rear suspension system to operate more efficiently and deliver more responsive handling qualities.

Yamaha YZF-R125 2011 Specification data:

Engine

Engine type
Single cylinder, liquid-cooled, 4-stroke, SOHC, 4-valve

Displacement
124.66cc

Bore x stroke
52.0 mm x 58.6 mm

Compression ratio
11.2 : 1

Maximum Power
11.0 kW (15.0PS) @ 9,000 rpm

Maximum Torque
12.24 Nm (1.25 kg-m) @ 8,000 rpm

Lubrication system
Wet sump

Carburettor
Fuel Injection

Clutch Type
multiple-disc coil spring

Ignition system
TCI

Starter system
Electric

Transmission system
Constant Mesh, 6-speed

Final transmission
Chain

Chassis

Frame
Steel Deltabox

Front suspension system
Telescopic forks

Front travel
130 mm

Caster Angle
24.2º

Trail
86.1 mm

Rear suspension system
Swingarm, monocross

Rear Travel
125 mm

Front brake
Single Disc, Ø 292 mm

Rear brake
Single Disc, Ø 230 mm

Front tyre
100/80-17 M/C

Rear tyre
130/70-17 M/C

Dimensions

Overall length
2,015 mm

Overall width
660 mm

Overall height
970 mm

Seat height
818 mm

Wheel base
1,355 mm

Minimum ground clearance
155 mm

Wet weight (including full oil and fuel tank)
138 kg

Fuel tank capacity
13.8 litres

Oil tank capacity
1.15 litres

Colour
Yamaha blue, Power black, Competition White

Yamaha YZF R125 Power Black

Yamaha YZF R125 exhaust

Yamaha YZF R125 analogue panel speedometer

Yamaha YZF R125 view

Yamaha YZF R125
