The engine of the new HP2 Sport is truly a masterpiece of engineering.
The raw numbers are enough to leave you in no doubt – this is a
power unit that is built with absolute performance in mind. It develops
133 horsepower (98 kW) at 8,750 rpm, and while its maximum torque
of 115 Nm is produced at 6,000 rpm, the boxer engine will rev all the

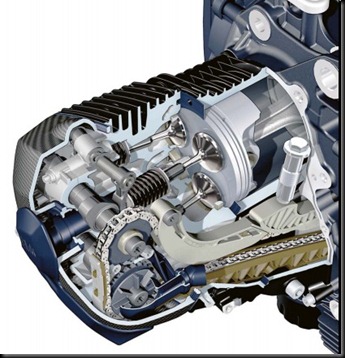

way up to 9,500 rpm. The HP2 Sport also features all-new cylinder
heads, with cam follower valve lifts attached to double overhead
Camshafts on each cylinder. There are four radial valves on each
cylinder, with valve plate diameters of 39 millimetres at the inflow
and 33 millimetres at the outflow. Other modifications such as
airflow-optimized intake and exhaust ports, new forged pistons
and redesigned connecting rods also contribute to the outstanding
performance. Two oil coolers, running in parallel one behind the
other, prevent the engine from overheating.
HP stands for High Performance. The HP2 Sport is a pure sportsbike,
and everything about it serves that end. Weight is reduced to an
absolute minimum, and radical design innovations abound. There
are a wealth of exclusive components, such as the adjustable Magura
master cylinders, adjustable milled foot pegs, and billet aluminium
top yokes, all designed and manufactured to the very highest quality
standards.
The bike also draws on BMW Motorrad’s extensive experience of
endurance racing. Everything from the gear shift assist to the carbon
fibre panels and 2D GP dashboard is designed solely with perform-
ance in mind. Riders will also love the Öhlins sport suspension, which
is adjustable for height and rebound/compression damping, and the
radially bolted Brembo monobloc brake system. BMW Motorrad ABS
is available as an option – for track use, this can be deactivated
The HP2 Sport represents the absolute pinnacle of boxer engine design. The BMW Motorrad designers have poured all their love of brilliant engineering and passion for detail into creating a thorough- bred sportsbike of the highest class.
As a genuine High Performance machine, there are no compromises in the HP2 Sport. Every detail right down to the last screw contributes to the handling and riding dynamics, so riders can push their abilities to the absolute limit. Thanks to components such as the carbon front fairing, self-supporting carbon tail section, and forged alloy wheels, the dry weight is an unbelievably light 178 kilograms. Combine this with the incredible engine and outstanding chassis, and you have a machine that is the sports rider’s dream.
BMW HP2 Sport technical data:
Engine
Type
Air/oil-cooled flat twin ('Boxer') 4-stroke engine, two camshafts and four radially aligned valves per cylinder, central balancer shaft
Bore x stroke
101 mm x 73 mm
Capacity
1,170 cc
Rated output
98 kW (133 hp) at 8,750 rpm (Max. 9,500 rpm)
Max. torque
115 Nm at 6,000 rpm
Compression ratio
12.5 : 1
Mixture control / engine management
Electronic intake pipe injection / digital engine management including knock sensor
BMS-K+ with overrun fuel cut-off, single ignition
Emission control
Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed
over 200 km/h
Fuel consumption per 100 km at constant 90 km/h
4.5 l
Fuel consumption per 100 km at constant 120 km/h
5.8 l
Fuel type
Unleaded super and premium, octane number 95-98 (RON)
(knock sensor; rated output at 98 RON)
Electrical system
Alternator
Three-phase alternator 480 W
Battery
12 V / 12 Ah, maintenance-free
Power transmission
Clutch
Single dry plate clutch, hydraulically operated
Gearbox
Constant mesh 6-speed gearbox with helical gear teeth, Quick shifter
Drive
Shaft drive
Chassis / brakes
Frame
Steel spaceframe, self-supporting carbon front and rear fairings
Front wheel location / suspension
BMW Motorrad Telelever, continuously adjustable spring pre-load, adjustable tension and compression stroke damping and vehicle height
Rear wheel location / suspension
BMW Motorrad Paralever, Öhlins central spring strut, continuously adjustable spring pre-load, adjustable tension and compression stroke damping and vehicle height
Suspension travel front / rear
105 mm / 120 mm
Wheelbase
1,485 mm
Castor
86 mm
Steering head angle
66 °
Wheels
Surface-milled forged wheels
Rim, front
3.50 x 17"
Rim, rear
6,00 x 17"
Tyres, front
120/70 ZR 17
Tyres, rear
190/55 ZR 17
Brake, front
Dual disc brake, floating brake discs, diameter 320 mm, Brembo Monoblock calipers four-piston
Brake, rear
Single disc brake, diameter 265 mm, double-piston floating calipers
ABS
Optional extra: BMW Motorrad ABS, can be switched off
Dimensions / weights
Length
2,135 mm
Width (incl. mirrors)
750 mm
Height (excl. mirrors)
1,163 mm
Seat height, unladen weight
830 mm
Inner leg curve, unladen weight
1,810 mm
Unladen weight, road ready, fully fuelled 1)
199 kg
Dry weight
178 kg
Permitted total weight
330 kg
Payload (with standard equipment)
131 kg
Usable tank volume
16 l
Reserve
approx. 3.0 l
