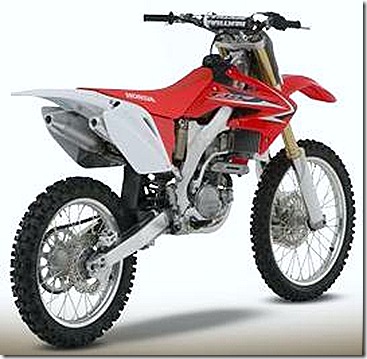

Technical Specification Honda CRF250R Off Road 250 cc
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78mm x 52.2mm |
| Compression Ratio | 13.1:1 |
| Valve Train | Unicam, four-valve; 31mm intake, titanium; 26mm exhaust, steel |
| Induction | Keihin 40mm flat-slide carburetor with Throttle Position Sensor (TPS) |
| Ignition | CD with electronic advance |
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel |
| Rear Suspension | Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel |
| Front Brake | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
| Wheelbase | 58.2 inches |
| Rake | (Caster Angle): 27.9 degrees |
| Trail | 125mm (4.9 inches) |
| Seat Height | 38 inches |
| Ground Clearance | 14.2 inches |
| Curb Weight | 227 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride) |
| Fuel Capacity | 1.9 gallons |
| Colors | Red |
